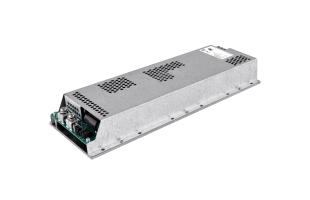

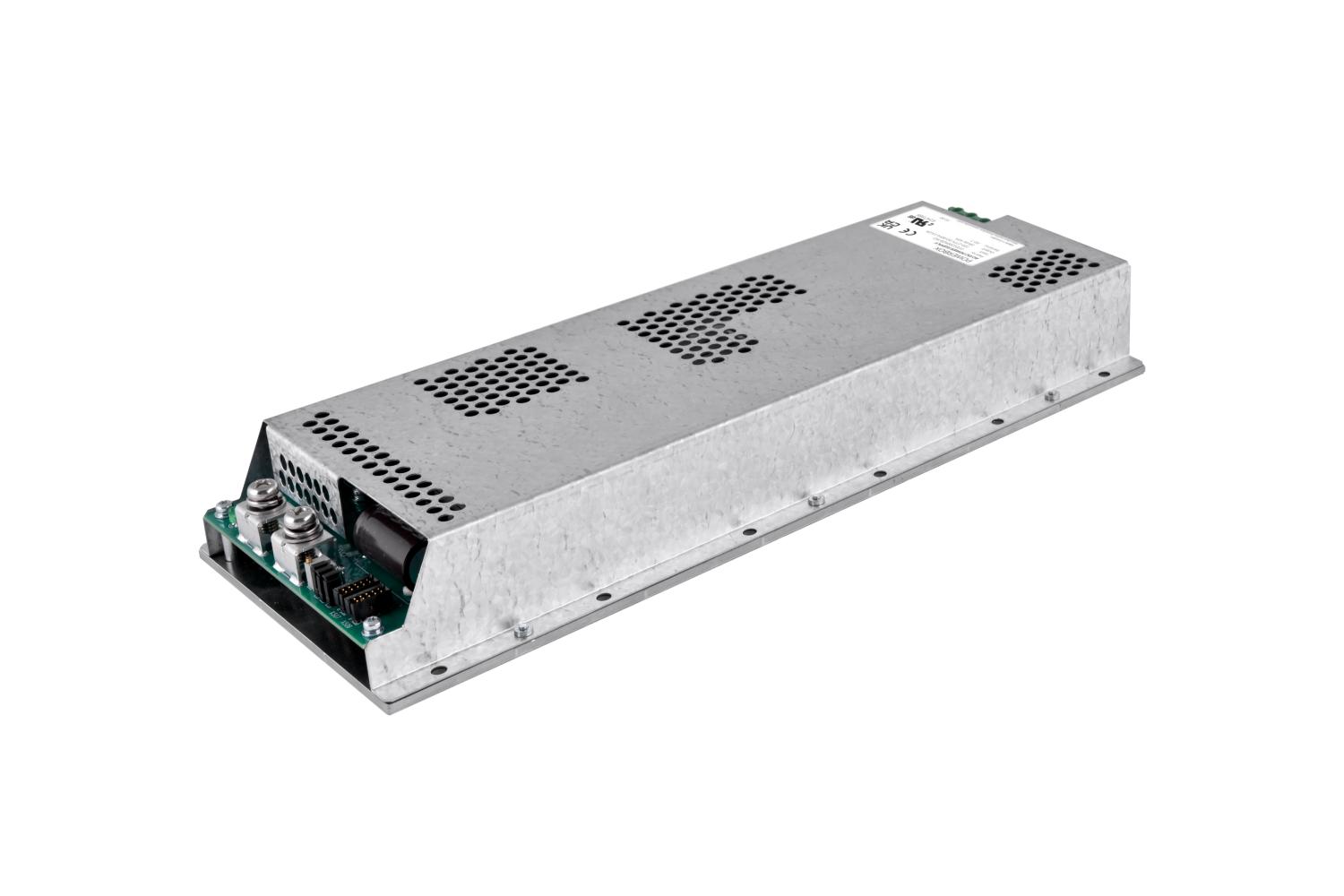

PRODUCTS AC-DC OFD SERIES OFD1200A

OFD1200A

Key Product Features

Vibration/shock according MIL-STD-810H
EMC according to MIL-STD-461 CE-102
Meet MIL-STD-1399-300
Conformal coating
Conductive cooling
Output active ORing (optional only 28Vdc & 48Vdc)
Paralleling & Redundancy operation (Active current share)
Voltage & Current, wide range adjustable (see manual)
Power Good, Remote sense, Remote On/Off

Technical Features

< 1U High
Constant Current
Parallel Function
Remote On/Off
Voltage adjustable to 0V

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

Datasheets
Instruction Manual
Glossary of Technical Terms

Drawings

Safety Certificates

RoHS declaration
DoC declaration
DoC declaration
DoC declaration
DoC declaration

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification	OFD1200A12-N	OFD1200A28-N	OFD1200A28-NO	OFD1200A48-N	OFD1200A48-NO	OFD1200A65-N
	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock
Input Voltage Range	AC110V, AC230V, AC277V			AC110V, AC230V, AC277V
Output Voltage / Current	12V 84A	28V 43A		48V 25A		65V 18.5A
Output Power	1200W			1200W
Output Voltage Adj Range	Refer to datasheet			Refer to datasheet
Operating Temp (°C)	-40 to 80℃			-40 to 80℃
Cooling Method	Conduction/baseplate			Conduction/baseplate
Dimensions (W x H x D)	340x40x142mm			340x40x142mm
Safety Agency Approvals
Technical Data	OFD1200A12-N	OFD1200A28-N	OFD1200A28-NO	OFD1200A48-N	OFD1200A48-NO	OFD1200A65-N
Performance Data	On request	On request	On request	On request	On request	On request
EMC Data	On request	On request	On request	On request	On request	On request
Expected Life	N/A	N/A	N/A	N/A	N/A	N/A
MTBF	On request	On request	On request	On request	On request	On request
Reliability Data
