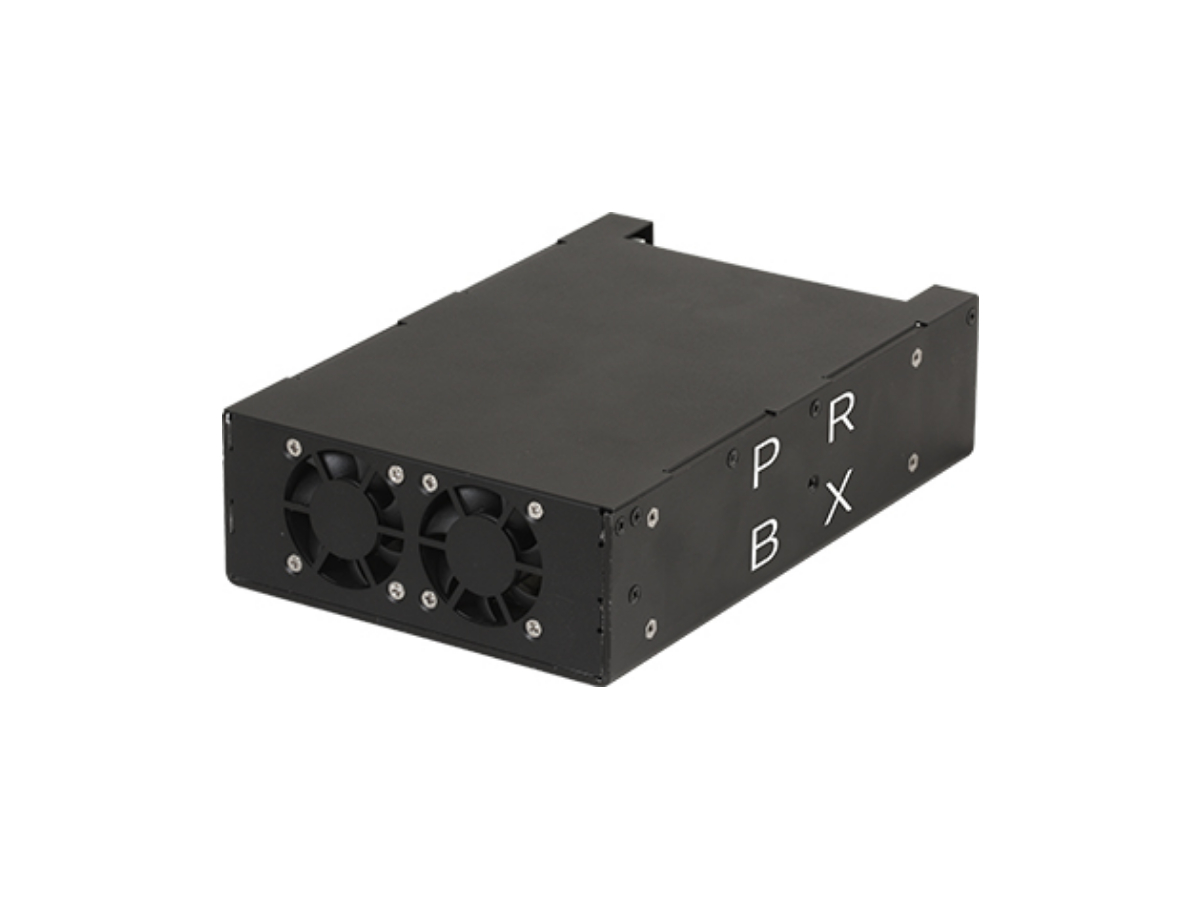

PRODUCTS AC-DC OBS SERIES OBS1100

OBS1100

NRND

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

Datasheet
Instruction Manual
Glossary of Technical Terms

Drawings

Safety Certificates

Reach declaration
CB certificate
Certificate TÜV
RoHS declaration

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification	OBS01046C	OBS01050C	OBS01055C	OBS01061C	OBS01070C	OBS01060C	OBS01064C
	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock
Input Voltage Range	AC110V, AC230V			AC110V, AC230V			AC110V, AC230V
Output Voltage / Current	24V 45.84A	28V 39.29A	32V 34.38A	36V 30.56A	48V 22.92A	34V 32.35A	42V 26.2A
Output Power	1100W			1100W			1100W
Output Voltage Adj Range	Refer to datasheet			Refer to datasheet			Refer to datasheet
Operating Temp (°C)	-10 to 50℃			-10 to 50℃			-10 to 50℃
Cooling Method	Convection			Convection			Convection
Dimensions (W x H x D)	150x61x235mm			150x61x235mm			150x61x235mm
Safety Agency Approvals
Technical Data	OBS01046C	OBS01050C	OBS01055C	OBS01061C	OBS01070C	OBS01060C	OBS01064C
Performance Data	On request	On request	On request	On request	On request	On request	On request
EMC Data	On request	On request	On request	On request	On request	On request	On request
Expected Life	N/A	N/A	N/A	N/A	N/A	N/A	N/A
MTBF	On request	On request	On request	On request	On request	On request	On request
Reliability Data
