PRODUCTS AC-DC OBP SERIES OBP2-300-1
Enquire

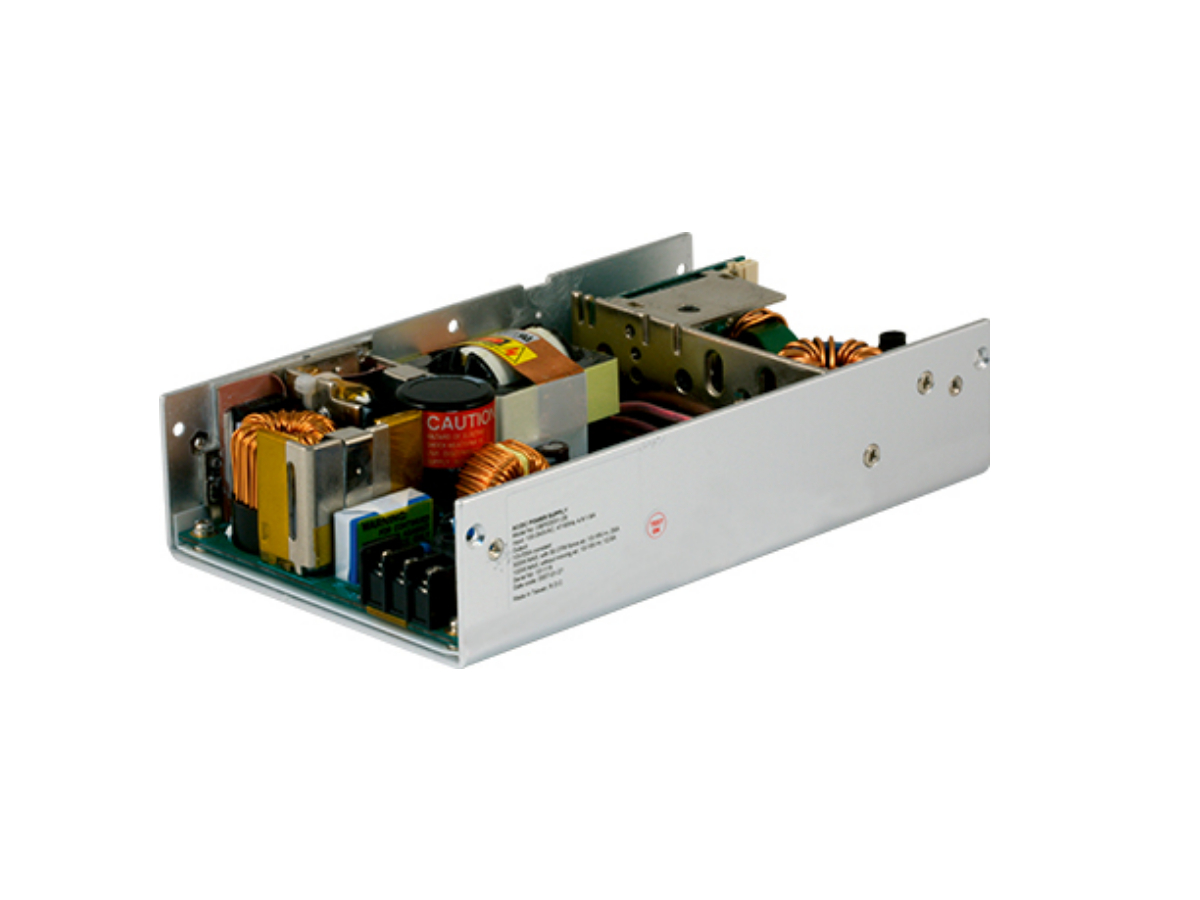

OBP2-300-1

OBP2-300-1

NRND

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Reach declaration
  • Certificate TÜV
  • Certificate TÜV
  • DoC declaration
  • RoHS declaration

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification OBP02013B OBP02016B OBP02031B OBP02037B OBP02046B OBP02055B OBP02170B OBP02013C OBP02016C OBP02031C OBP02037C OBP02046C OBP02055C OBP02170C
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC110 - 230V AC110 - 230V AC110 - 230V AC110 - 230V AC110 - 230V
Output Voltage / Current V1: 3.3V 60A
V2: 12V 0.35A		 V1: 5.1V 60A
V2: 12V 0.35A		 V1: 12V 25A
V2: 12V 0.35A		 V1: 15V 20A
V2: 12V 0.35A		 V1: 30V 10A
V2: 12V 0.35A		 V1: 48V 6.3A
V2: 12V 0.35A		 V1: 3.3V 35A
V2: 12V 0.35A		 V1: 3.3V 60A
V2: 12V 0.35A		 V1: 5.1V 60A
V2: 12V 0.35A		 V1: 12V 25A
V2: 12V 0.35A		 V1: 15V 20A
V2: 12V 0.35A		 V1: 30V 10A
V2: 12V 0.35A		 V1: 48V 6.3A
V2: 12V 0.35A		 V1: 3.3V 35A
V2: 12V 0.35A
Output Power 200W 300W 300W 200W 300W 300W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) to 50℃ to 50℃ to 50℃ to 50℃ to 50℃
Cooling Method Convection Convection Convection Forced Air Forced Air Forced Air
Dimensions (W x H x D) 114.3x44.45x190.5mm 114.3x44.45x190.5mm 114.3x44.45x190.5mm 114.3x44.45x190.5mm 114.3x44.45x190.5mm
Safety Agency Approvals
Technical Data OBP02013B OBP02016B OBP02031B OBP02037B OBP02046B OBP02055B OBP02170B OBP02013C OBP02016C OBP02031C OBP02037C OBP02046C OBP02055C OBP02170C
Performance Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request On request On request On request On request
Reliability Data
