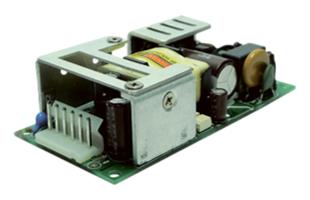

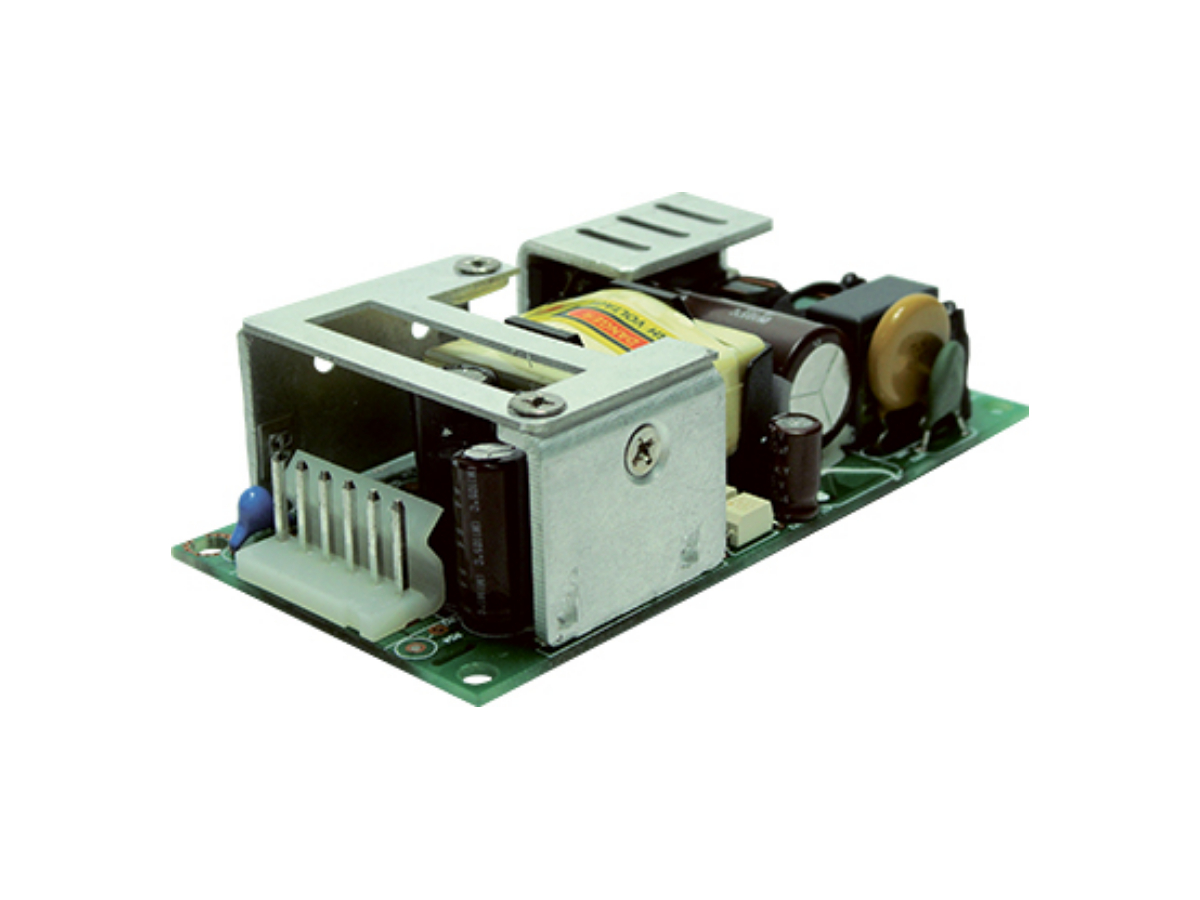

OBH48-1

NRND

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Reach declaration
  • Certificate TÜV
  • DoC declaration
  • RoHS declaration

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification OBH07016A OBH07031A OBH07037A OBH07046A OBH07070A OBH07016C OBH07031C OBH07037C OBH07046C OBH07070C
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC110 - 230V AC110 - 230V AC110 - 230V AC110 - 230V
Output Voltage / Current 5V 8A 12V 3.5A 15V 3A 24V 2A 48V 1A 5V 8A 12V 3.5A 15V 3A 24V 2A 48V 1A
Output Power 40W 42W 45W 48W 40W 42W 45W 48W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to 50℃ -10 to 50℃ -10 to 50℃ -10 to 50℃
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 73.1x33.6x117.2mm 73.1x33.6x117.2mm 73.1x33.6x117.2mm 73.1x33.6x117.2mm
Safety Agency Approvals
Technical Data OBH07016A OBH07031A OBH07037A OBH07046A OBH07070A OBH07016C OBH07031C OBH07037C OBH07046C OBH07070C
Performance Data On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request
Reliability Data
