PRODUCTS AC-DC OBH SERIES OBH40-3
Enquire

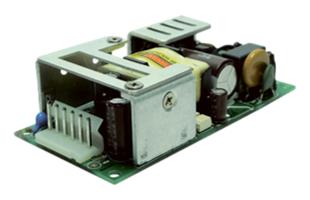

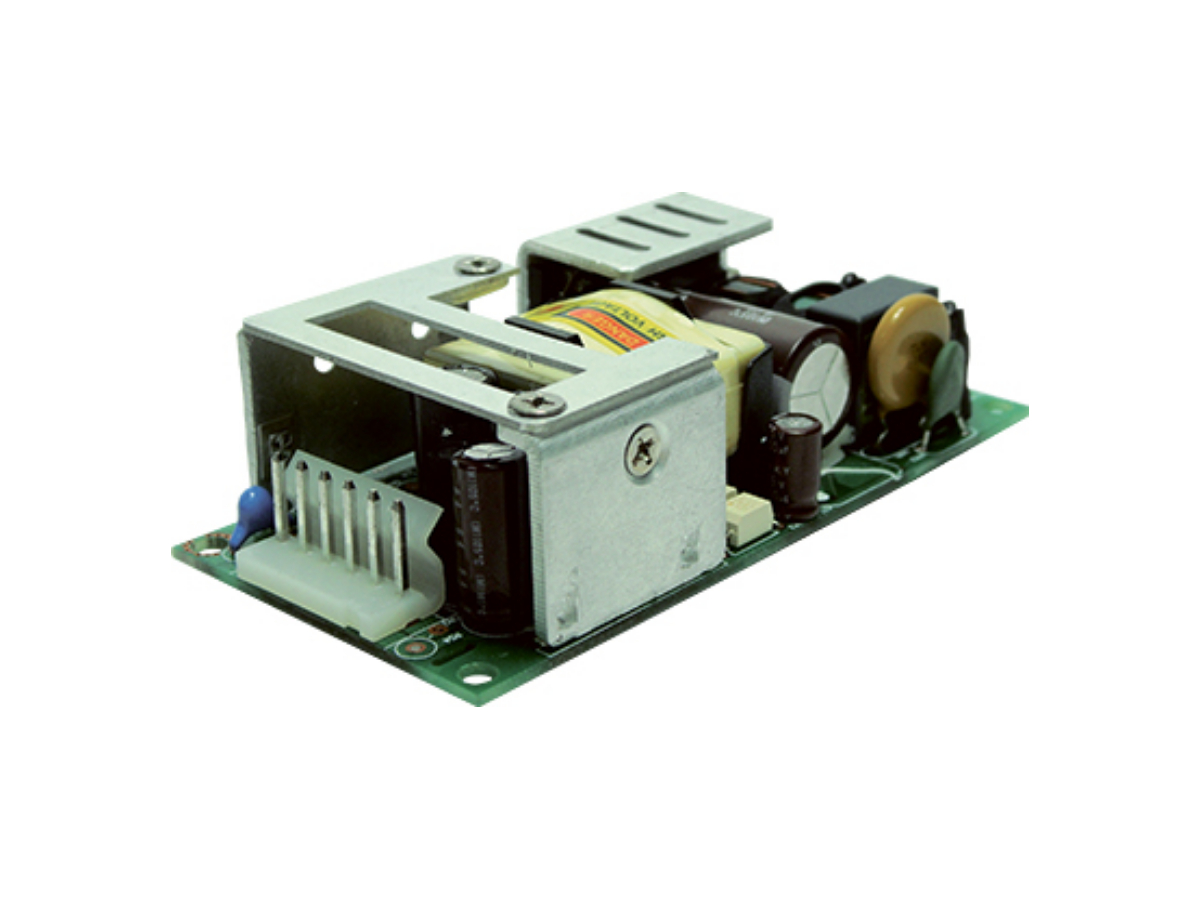

OBH40-3

OBH40-3

NRND

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Reach declaration
  • Certificate TÜV
  • DoC declaration
  • RoHS declaration

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification OBH07313A OBH07303A OBH07304A OBH07316A OBH07318A OBH07313C OBH07303C OBH07304C OBH07316C OBH07318
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC110 - 230V AC110 - 230V AC110 - 230V AC110 - 230V
Output Voltage / Current V1: 5V 6A
V2: 12V 2A
V3: -12V 0.3A		 V1: 3.3V 6A
V2: 5V 2A
V3: 12V 0.3A		 V1: 5V 6A
V2: 3.3V 1.5A
V3: 12V 0.3A		 V1: 5V 6A
V2: 15V 1.5A
V3: -15V 0.3A		 V1: 5V 6A
V2: 24V 1A
V3: -12V 0.3A		 V1: 5V 6A
V2: 12V 2A
V3: -12V 0.3A		 V1: 3.3V 6A
V2: 5V 2A
V3: 12V 0.3A		 V1: 5V 6A
V2: 3.3V 1.5A
V3: 12V 0.3A		 V1: 5V 6A
V2: 15V 1.5A
V3: -15V 0.3A		 V1: 5V 6A
V2: 24V 1A
V3: -12V 0.3A
Output Power 40W 30W 40W 30W 40W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to 50℃ -10 to 50℃ -10 to 50℃ -10 to 50℃
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 73.1x33.6x117.2mm 73.1x33.6x117.2mm 73.1x33.6x117.2mm 73.1x33.6x117.2mm
Safety Agency Approvals
Technical Data OBH07313A OBH07303A OBH07304A OBH07316A OBH07318A OBH07313C OBH07303C OBH07304C OBH07316C OBH07318
Performance Data On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request
Reliability Data
