LMA100F

Key Product Features

Medical AC-DC Power Supply
MOOP for Medical Applications

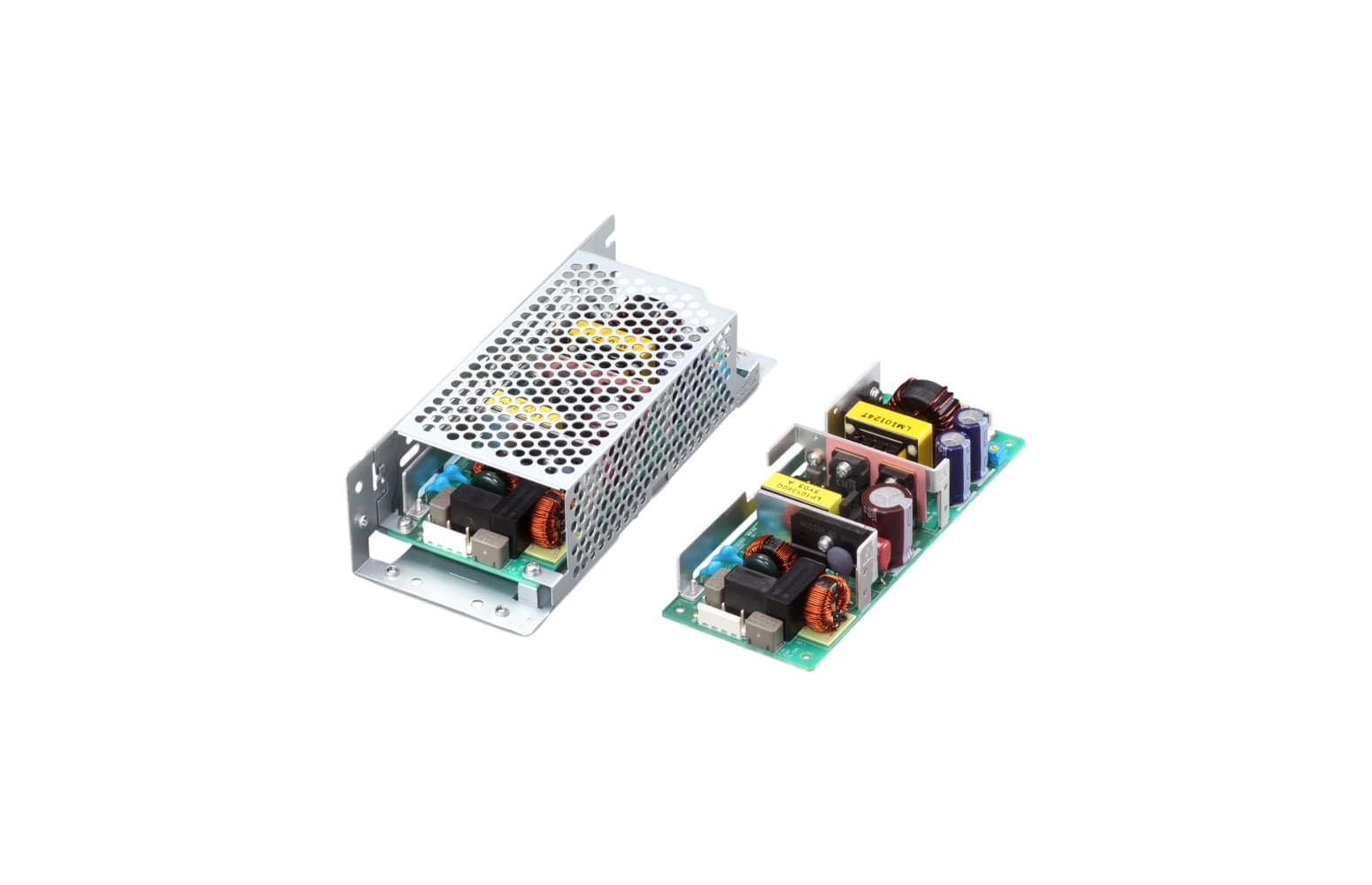

Open Frame or With Cover/Chassis
Up to 200% Peak Power for up to 10s
5 Year Warranty
EN & UL Approved

Technical Features

Leakage Current <0.5mA
Peak Power
Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

LM⁽¹⁾ A⁽²⁾ 100⁽³⁾ F⁽⁴⁾ - □⁽⁵⁾ - □⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
G: Low leakage current
H: with the function to be acceptable to output peak current
J1: VH (J.S.T.) connector type
R: with Remote ON/OFF
R2: with Remote ON/OFF
S: with Chassis
SN: with Chassis & cover
P: Setting in the overcurrent protection rating

string(710) "LM⁽¹⁾  A⁽²⁾  100⁽³⁾  F⁽⁴⁾  -  □⁽⁵⁾  -  □⁽⁶⁾
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
 C: with Coating
 G: Low leakage current
 H: with the function to be acceptable to output peak current
 J1: VH (J.S.T.) connector type
 R: with Remote ON/OFF
 R2: with Remote ON/OFF
 S: with Chassis
 SN: with Chassis & cover
 P: Setting in the overcurrent protection rating"
