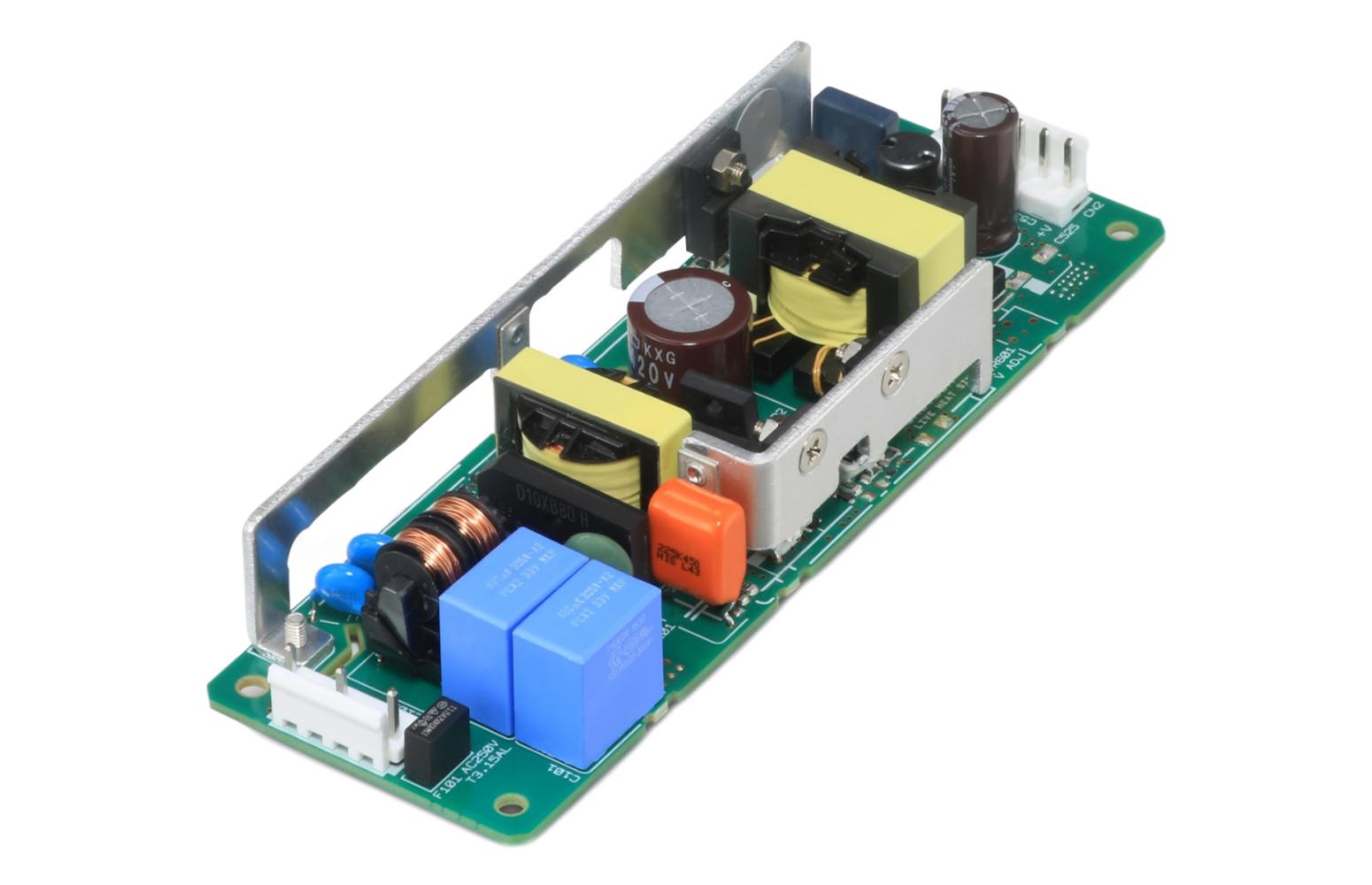

LHA75F

LHA75F

Key Product Features

  • Basic Function AC-DC Power Supply
  • Cost Effective
  • Open Frame or With Cover/Chassis
  • Various Additional Options
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • < 1U High
  • Leakage Current <0.5mA

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  J4: EP (TE　Connectivity) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Please refer to Instruction manual 6.
3D product images are available.

Read Me First
Standard model    SN：with chassis & cover
string(1191) "
LH(1)  A(2)  75(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J4: EP (TE　Connectivity) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Please refer to Instruction manual 6.
3D product images are available.

 Read Me First
 Standard model    SN：with chassis & cover"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
    • SN:with Chassis and cover
  • 3D CAD Data (IGES)
    • Standard model
    • SN:with Chassis and cover
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LH(1)  A(2)  75(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J4: EP (TE　Connectivity) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer

Please refer to Instruction manual 6.
3D product images are available.

Read Me First
Standard model   SN：with chassis & cover
Basic Specification LHA75F-3R3-Y LHA75F-5 LHA75F-12 LHA75F-15 LHA75F-24 LHA75F-36 LHA75F-48
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 3.3V 12A 5V 12A 12V 6.3A 15V 5A 24V 3.2A 36V 2.1A 48V 1.6A
Output Power 39.6W 60W 75.6W 75W 76.8W 75.6W 76.8W
Output Voltage Adj Range 2.85 - 3.63V Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection/Forced air * Convection/Forced air * Convection/Forced air *
Dimensions (W x H x D) 50x27x150mm 50x27x150mm 50x27x150mm
Safety Agency Approvals UL62368-1, C-UL （equivalent to CAN/CSA-C22.2 No.62368-1） , EN62368-1 * UL62368-1, C-UL （equivalent to CAN/CSA-C22.2 No.62368-1） , EN62368-1 * UL62368-1, C-UL （equivalent to CAN/CSA-C22.2 No.62368-1） , EN62368-1 *
Technical Data LHA75F-3R3-Y LHA75F-5 LHA75F-12 LHA75F-15 LHA75F-24 LHA75F-36 LHA75F-48
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
