LHA300F

LHA300F

Key Product Features

  • Basic Function AC-DC Power Supply
  • Cost Effective
  • Open Frame or With Cover/Chassis
  • Various Additional Options
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • < 1U High
  • Leakage Current <0.5mA

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  J4: EP (TE　Connectivity) connector type
  J5: 8 pin type(Output connector)
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  T: Terminal block type
  T4: Push-inTerminal block type
  U1: Can be attached the external capacitor unit

Please refer to Instruction manual 6.
3D product images are available.

Read Me First
Standard model    SN：with chassis & cover    T4：Push-inTerminal block type
string(1587) "
LH(1)  A(2)  300(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J4: EP (TE　Connectivity) connector type
  J5: 8 pin type(Output connector)
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  T: Terminal block type
  T4: Push-inTerminal block type
  U1: Can be attached the external capacitor unit

Please refer to Instruction manual 6.
3D product images are available.

 Read Me First
 Standard model    SN：with chassis & cover    T4：Push-inTerminal block type"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
    • SN:with Chassis and cover
  • 3D CAD Data (IGES)
    • Standard model
    • SN:with Chassis and cover

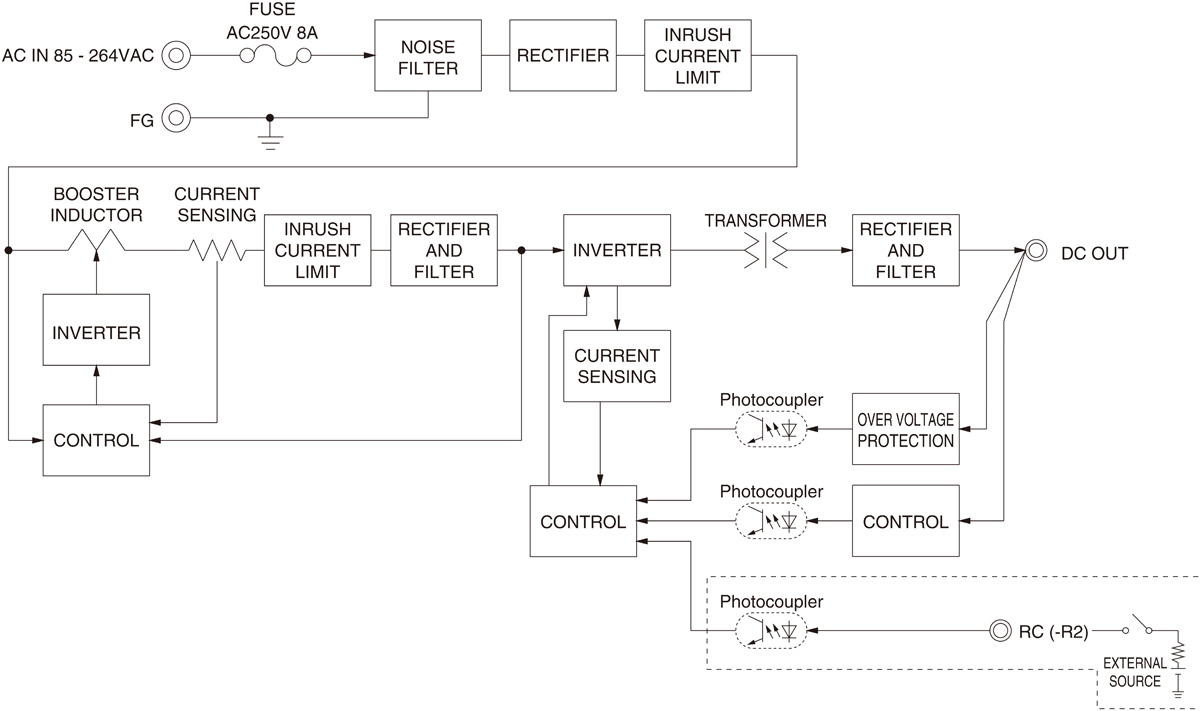

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LH(1)  A(2)  300(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J4: EP (TE　Connectivity) connector type
  J5: 8 pin type(Output connector)
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  T: Terminal block type
  T4: Push-inTerminal block type
  U1: Can be attached the external capacitor unit

Please refer to Instruction manual 6.
3D product images are available.

Read Me First
Standard model   SN：with chassis & cover   T4：Push-inTerminal block type
Basic Specification LHA300F-12-Y LHA300F-24-Y LHA300F-48-Y
  Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ
Output Voltage / Current 12V 25A 24V 12.5A 48V 6.3A
Output Power 300W 302.4W
Output Voltage Adj Range 11.40 - 13.20V 22.80 - 26.40V 45.60 - 52.80V
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection/Forced air *
Dimensions (W x H x D) 84x37x180mm
Safety Agency Approvals UL62368-1, C-UL （equivalent to CAN/CSA-C22.2 No.62368-1） , EN62368-1, EN62477-1（Overvoltage category Ⅲ) *
