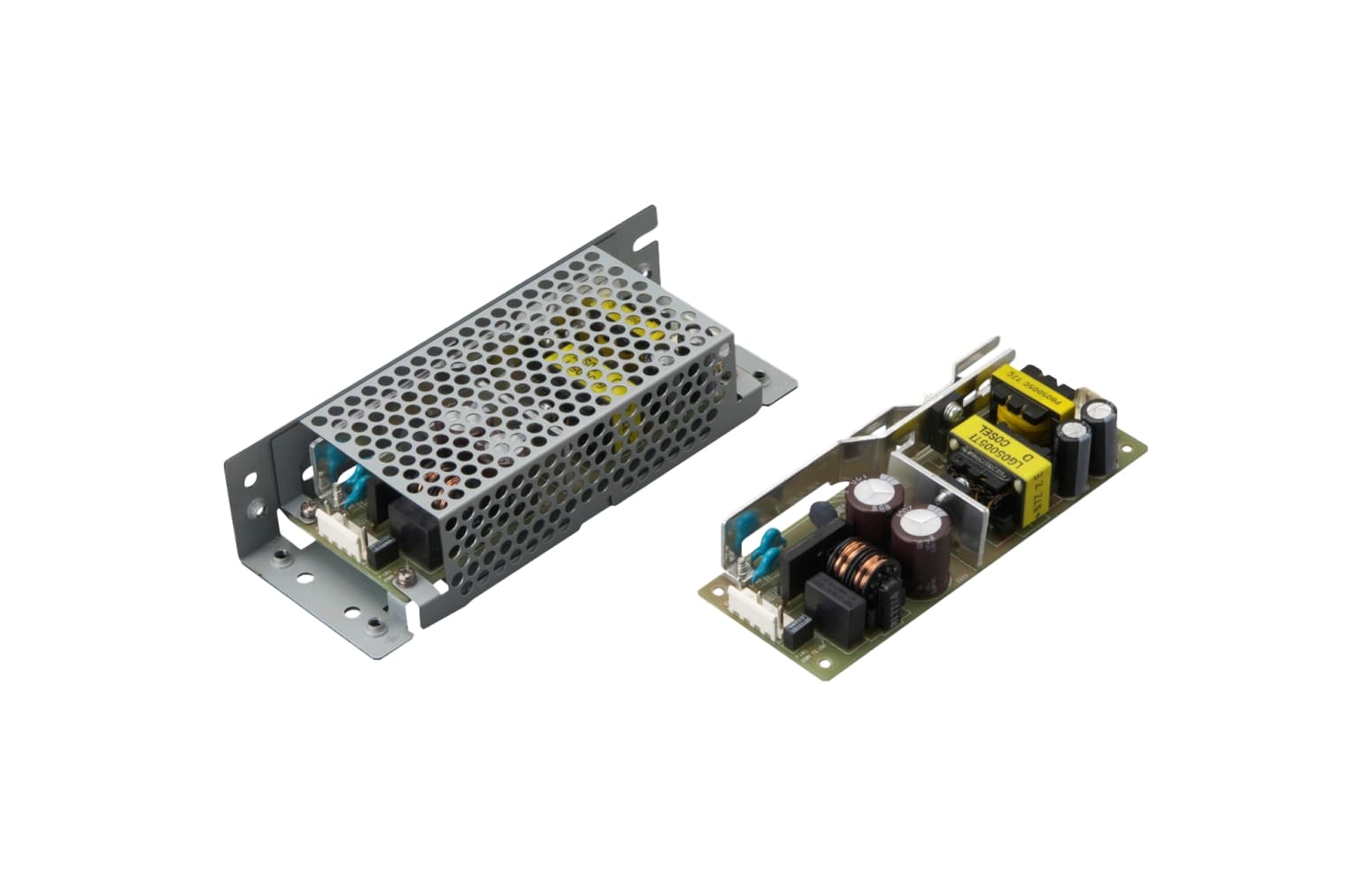

LGA50A

LGA50A

NRND

We do not recommend using this product in any new designs as it is only suitable for the Japanese market due to the input voltage range of AC85 - 132V.  For alternative open frame products, please see Open Frame AC-DC products.

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
 J1: VH (J.S.T.) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
string(665) "
LG(1)  A(2)  50(3)  A(4)  -  5(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) 100/120V input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
 J1: VH (J.S.T.) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LG(1)  A(2)  50(3)  A(4)  -  5(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) 100/120V input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
 J1: VH (J.S.T.) connector type
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
Basic Specification LGA50A-3R3-Y LGA50A-5 LGA50A-12 LGA50A-15 LGA50A-24 LGA50A-24-H LGA50A-48
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 132V 1Φ AC85 - 132V 1Φ AC85 - 132V 1Φ
Output Voltage / Current 3.3V 10A 5V 10A 12V 4.3A 15V 3.5A 24V 2.5A 24V 2.5(Peak 3.2)A 48V 1.3A
Output Power 33W 50W 51.6W 52.5W 60W 62.4W
Output Voltage Adj Range 2.85 - 3.63V Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +60℃, 20 - 90%RH (Non condensing) * -10 to +60℃, 20 - 90%RH (Non condensing) * -10 to +60℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection (Refer to Instruction Manual 3.2) Convection (Refer to Instruction Manual 3.2) Convection (Refer to Instruction Manual 3.2)
Dimensions (W x H x D) 50x28.5x132mm 50x28.5x132mm 50x28.5x132mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1
Complies with DEN-AN		 UL60950-1, C-UL (CSA60950-1) , EN62368-1
Complies with DEN-AN		 UL60950-1, C-UL (CSA60950-1) , EN62368-1
Complies with DEN-AN
Technical Data LGA50A-3R3-Y LGA50A-5 LGA50A-12 LGA50A-15 LGA50A-24 LGA50A-24-H LGA50A-48
Performance Data On request
EMC Data On request
Expected Life N/A
MTBF On request
Reliability Data


⌅
