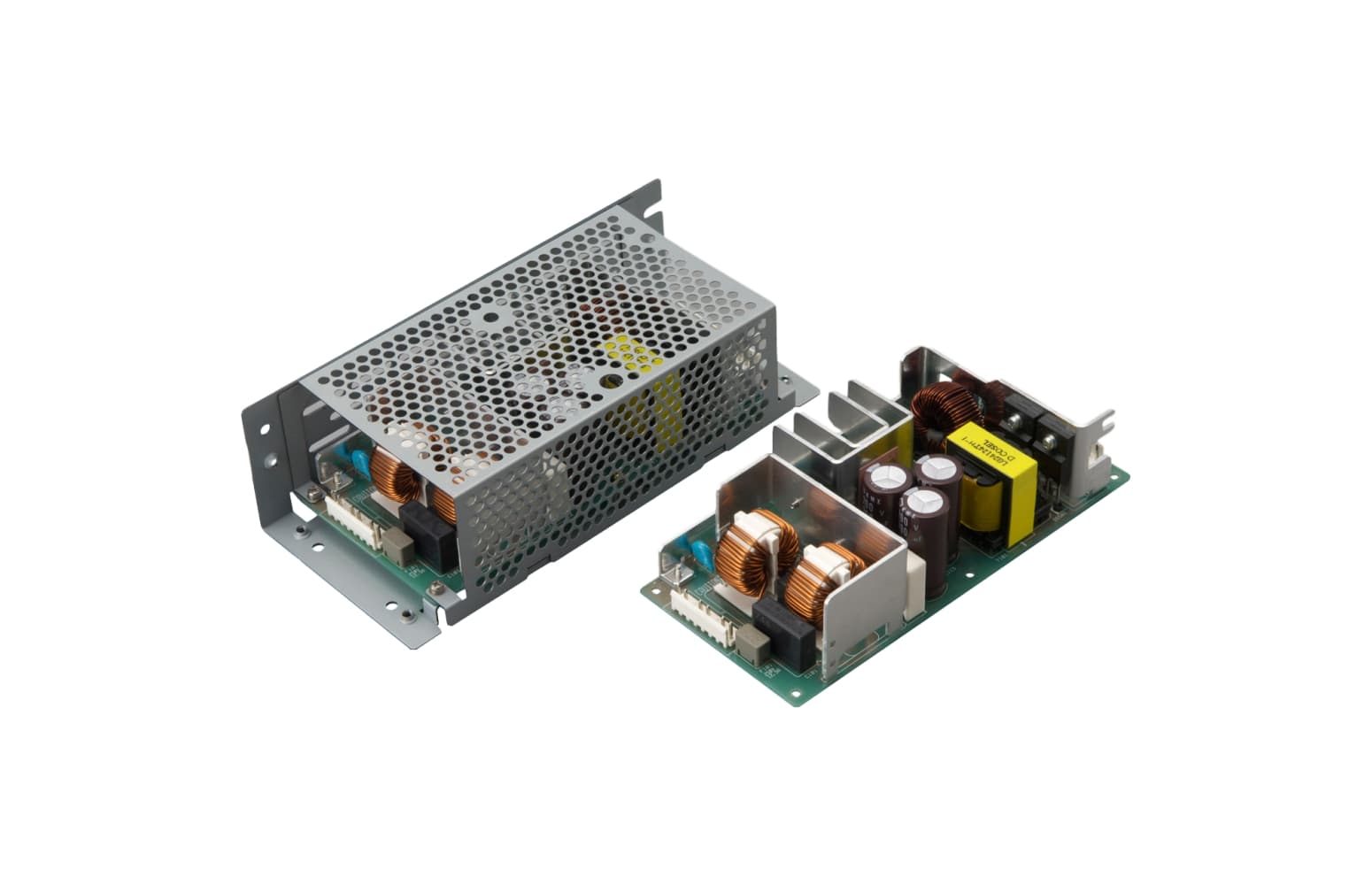

LGA240A

LGA240A

NRND

We do not recommend using this product in any new designs as it is only suitable for the Japanese market due to the input voltage range of AC85 - 132V.  For alternative open frame products, please see Open Frame AC-DC products.

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
 J1: VH (J.S.T.) connector type
  S: with Chassis
  SN: with Chassis & cover
  T: Vertical terminal block
  Y: with Potentiometer
string(710) "
LG(1)  A(2)  240(3)  A(4)  -  5(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) 100/120V input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
 J1: VH (J.S.T.) connector type
  S: with Chassis
  SN: with Chassis & cover
  T: Vertical terminal block
  Y: with Potentiometer"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model (includes SN option)
  • 3D CAD Data (IGES)
    • Standard model (includes SN option)
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LG(1)  A(2)  240(3)  A(4)  -  5(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) 100/120V input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  H: with the function to be acceptable to output peak current (only 24V)
 J1: VH (J.S.T.) connector type
  S: with Chassis
  SN: with Chassis & cover
  T: Vertical terminal block
  Y: with Potentiometer
Basic Specification LGA240A-24 LGA240A-24-H
  Check Stock Check Stock
Input Voltage Range AC85 - 132V 1Φ
Output Voltage / Current 24V 10A 24V 10(Peak 12.5)A
Output Power 240W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -10 to +60℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection (Refer to Instruction Manual 3.2)
Dimensions (W x H x D) 84x48.5x180mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1), EN62368-1
Complies with DEN-AN
Technical Data LGA240A-24 LGA240A-24-H
Performance Data On request
EMC Data On request
Expected Life N/A
MTBF On request
Reliability Data


⌅
