LFP300F

LFP300F

NRND

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  J: EP(Tyco Electronics)Connector type
  J1: VH (J.S.T.) conneclor type
  R: with Remote ON/OFF
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  SNF: with chassis & cover & fan (only 24V)
  T1: Holizontal terminal block
  U1: Can be attached the external
    capacitor unit

Please refer to Instruction manual 6.
string(940) "
LF(1)  P(2)  300(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J: EP(Tyco Electronics)Connector type
  J1: VH (J.S.T.) conneclor type
  R: with Remote ON/OFF
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  SNF: with chassis & cover & fan (only 24V)
  T1: Holizontal terminal block
  U1: Can be attached the external
    capacitor unit

Please refer to Instruction manual 6."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

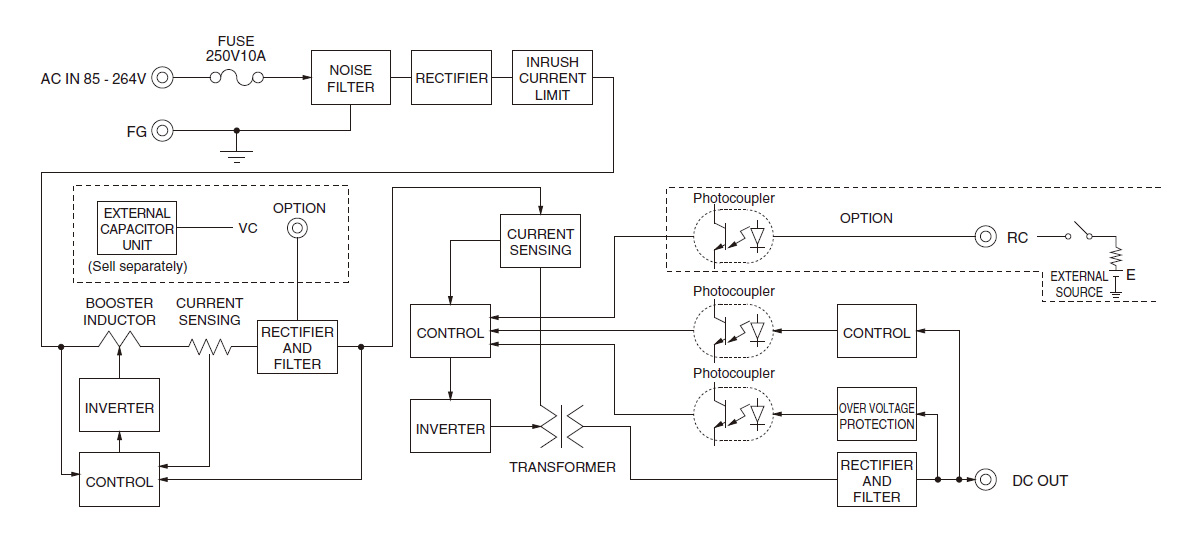

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LF(1)  P(2)  300(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  J: EP(Tyco Electronics)Connector type
  J1: VH (J.S.T.) conneclor type
  R: with Remote ON/OFF
  R2: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  SNF: with chassis & cover & fan (only 24V)
  T1: Holizontal terminal block
  U1: Can be attached the external
    capacitor unit

Please refer to Instruction manual 6.
Basic Specification LFP300F-24-TY LFP300F-30-TY LFP300F-36-TY LFP300F-48-TY
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 24V 12.5A (Peak :25A) Convection Cooling
24V 15A (Peak :25A) Forced Air Cooling		 30V 10A (Peak :20A) Convection Cooling
30V 12A (Peak :20A) Forced Air Cooling		 36V 8.4A (Peak :16.8A) Convection Cooling
36V 10A (Peak :16.8A) Forced Air Cooling		 48V 6.3A (Peak :12.6A) Convection Cooling
48V 7.5A (Peak :12.6A) Forced Air Cooling
Output Power 300W (Peak: 600W) Convection Cooling
360W (Peak: 600W) Forced Air Cooling		 302.4W (Peak: 604.8W) Convection Cooling
360W (Peak: 604.8W) Forced Air Cooling
Output Voltage Adj Range 21.60 - 27.50V 27.00 - 33.00V 32.40 - 39.60V 39.60 - 52.80V
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection/Forced air * Convection/Forced air *
Dimensions (W x H x D) 95x52.5x222mm (without terminal block) 95x52.5x222mm (without terminal block)
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 Complies with DEN-AN UL60950-1, C-UL (CSA60950-1) , EN62368-1 Complies with DEN-AN
