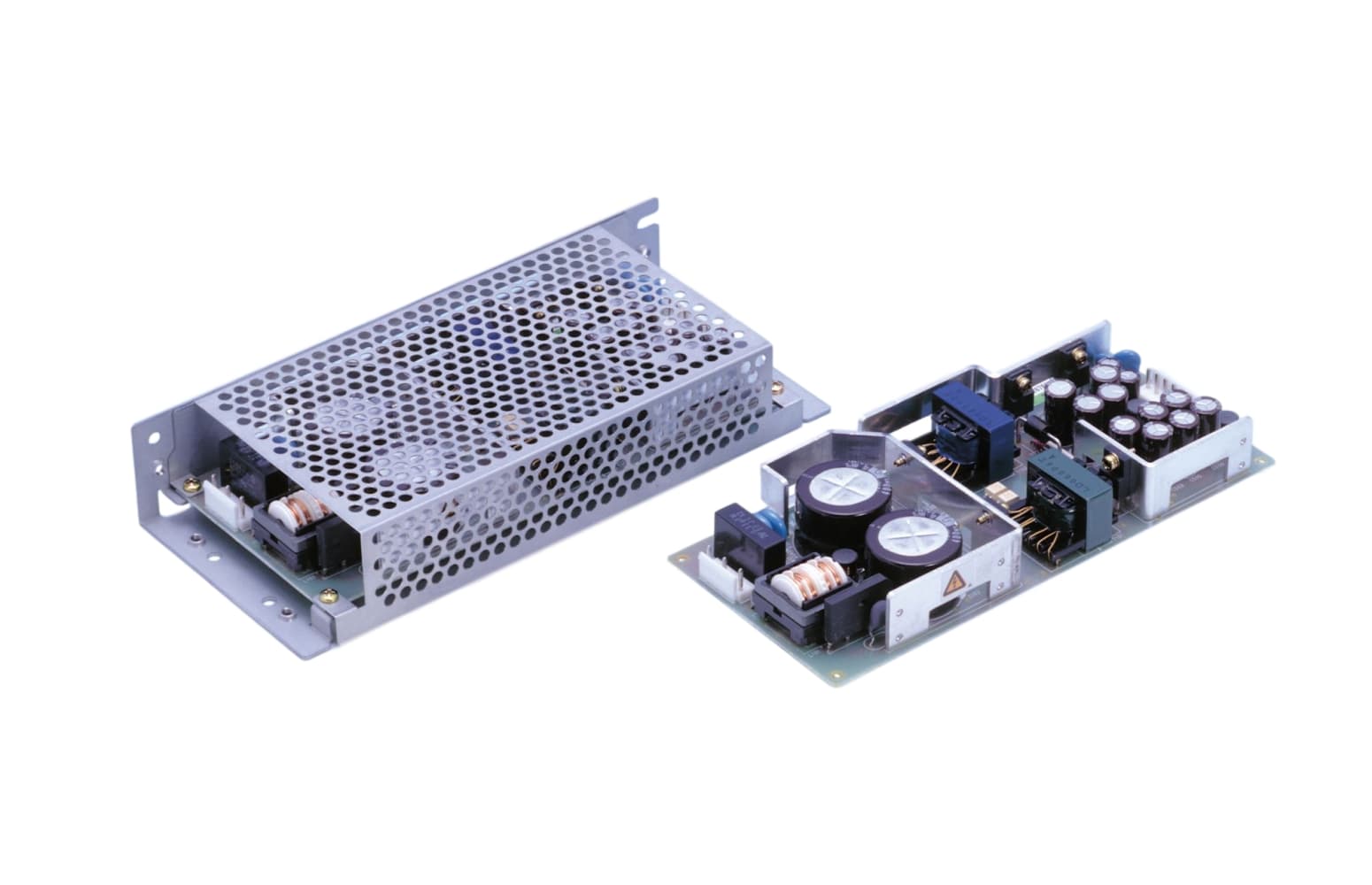

LDC60F
Discontinued
This series will be discontinued in Sep 2023.
Options
Drawings
LD(1) C(2) 60(3) F(4) - 1(5) - □(6)
(1) Series name(2) Multiple output
(3) Output wattage
(4) Universal input
(5) Output voltage combination
(6) Optional *
C: with Coating
G: Low leakage current
S: with Chassis
SN: with Chassis & cover
Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
| Basic Specification | LDC60F-1 | LDC60F-2 |
|---|---|---|
| Check Stock | Check Stock | |
| Input Voltage Range | AC85 - 264V 1Φ or DC110 - 370V | |
| Output Voltage / Current | V1: +5V 5.0A (Peak: 7.0A) V2: +12V 2.5A (Peak: 3.5A) V3: -12V 0.5A (Peak: 0.7A) |
V1: +5V 5.0A (Peak: 7.0A) V2: +15V 2.0A (Peak: 3.5A) V3: -15V 0.5A (Peak: 0.7A) |
| Output Power | 61W | 62.5W |
| Output Voltage Adj Range | Refer to datasheet | |
| Operating Temp (°C) | -10 to +60℃, 20 - 90%RH (Non condensing) * | |
| Cooling Method | Convection | |
| Dimensions (W x H x D) | 83x26x185mm | |
| Safety Agency Approvals | UL60950-1, CSA C22.2 No.60950-1, EN62368-1 Complies with DEN-AN and IEC60950-1 | |
| Technical Data | LDC60F-1 | LDC60F-2 |
| Performance Data | ||
| EMC Data | ||
| Expected Life | ||
| MTBF | ||
| Reliability Data | ||
