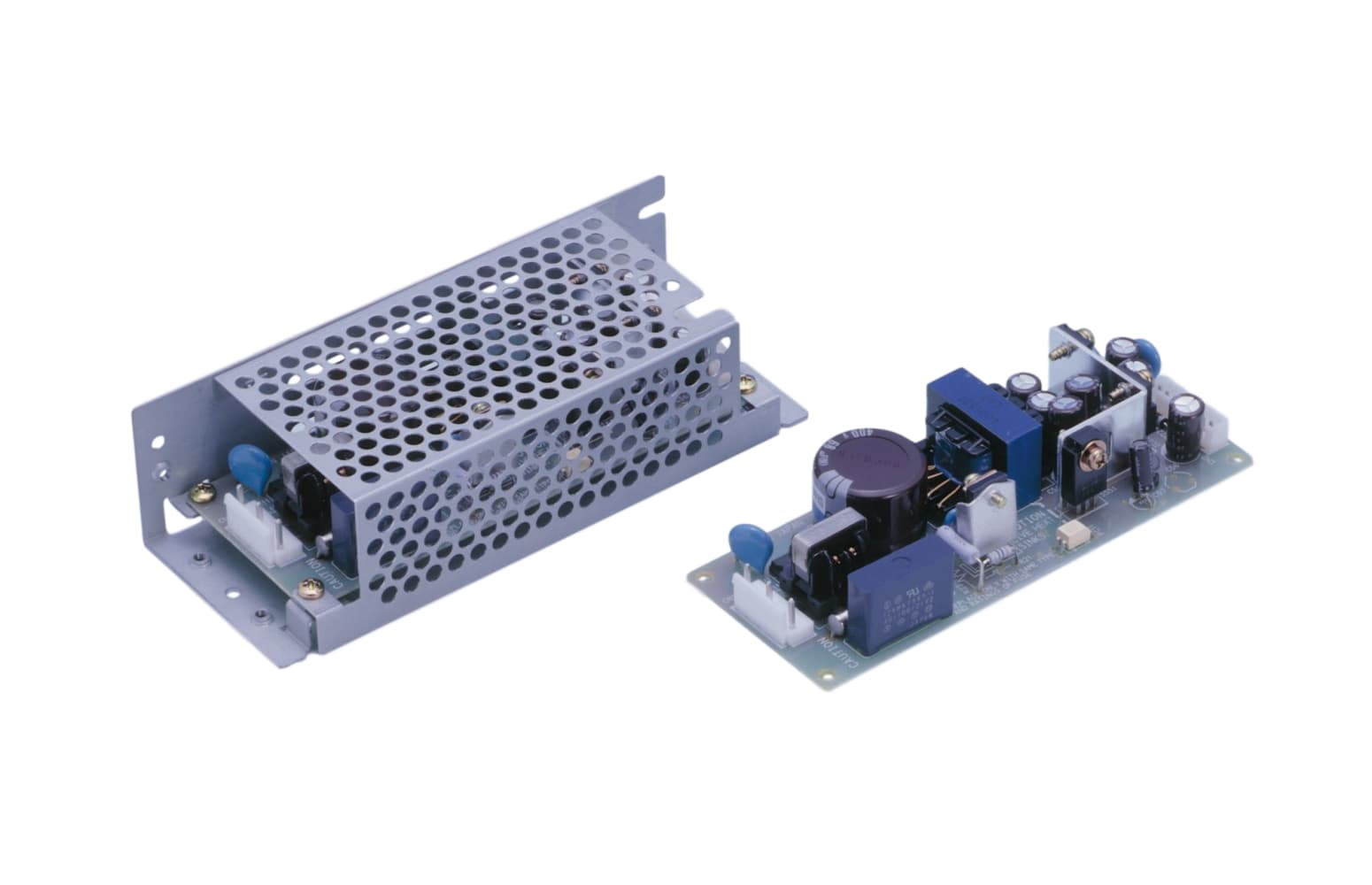

LDC15F

Discontinued

This series will be discontinued in Sep 2023.

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
string(625) "

LD(1)  C(2)  15(3)  F(4)  -  1(5)  -  (6)

(1) Series name
(2) Multiple output
(3) Output wattage
(4) Universal input
(5) Output voltage combination
(6) Optional *
  C: with Coating
  G: Low leakage current
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LD(1)  C(2)  15(3)  F(4)  -  1(5)  -  (6)

(1) Series name
(2) Multiple output
(3) Output wattage
(4) Universal input
(5) Output voltage combination
(6) Optional *
  C: with Coating
  G: Low leakage current
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
Basic Specification LDC15F-1 LDC15F-2
  Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC110 - 370V
Output Voltage / Current V1: +5V 2.0A (Peak: 3.0A)
V2: +12V 0.3A (Peak: 0.6A)
V3: -12V 0.2A (Peak: 0.3A)
V1: +5V 2.0A (Peak: 3.0A)
V2: +15V 0.3A (Peak: 0.6A)
V3: -15V 0.2A (Peak: 0.3A)
Output Power 16W 17.5W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -10 to +60℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection
Dimensions (W x H x D) 50x26x127mm
Safety Agency Approvals UL60950-1, CSA C22.2 No.60950-1, EN62368-1 Complies with DEN-AN and IEC60950-1
Technical Data LDC15F-1 LDC15F-2
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
