PRODUCTS AC-DC LDA SERIES LDA50F
Enquire

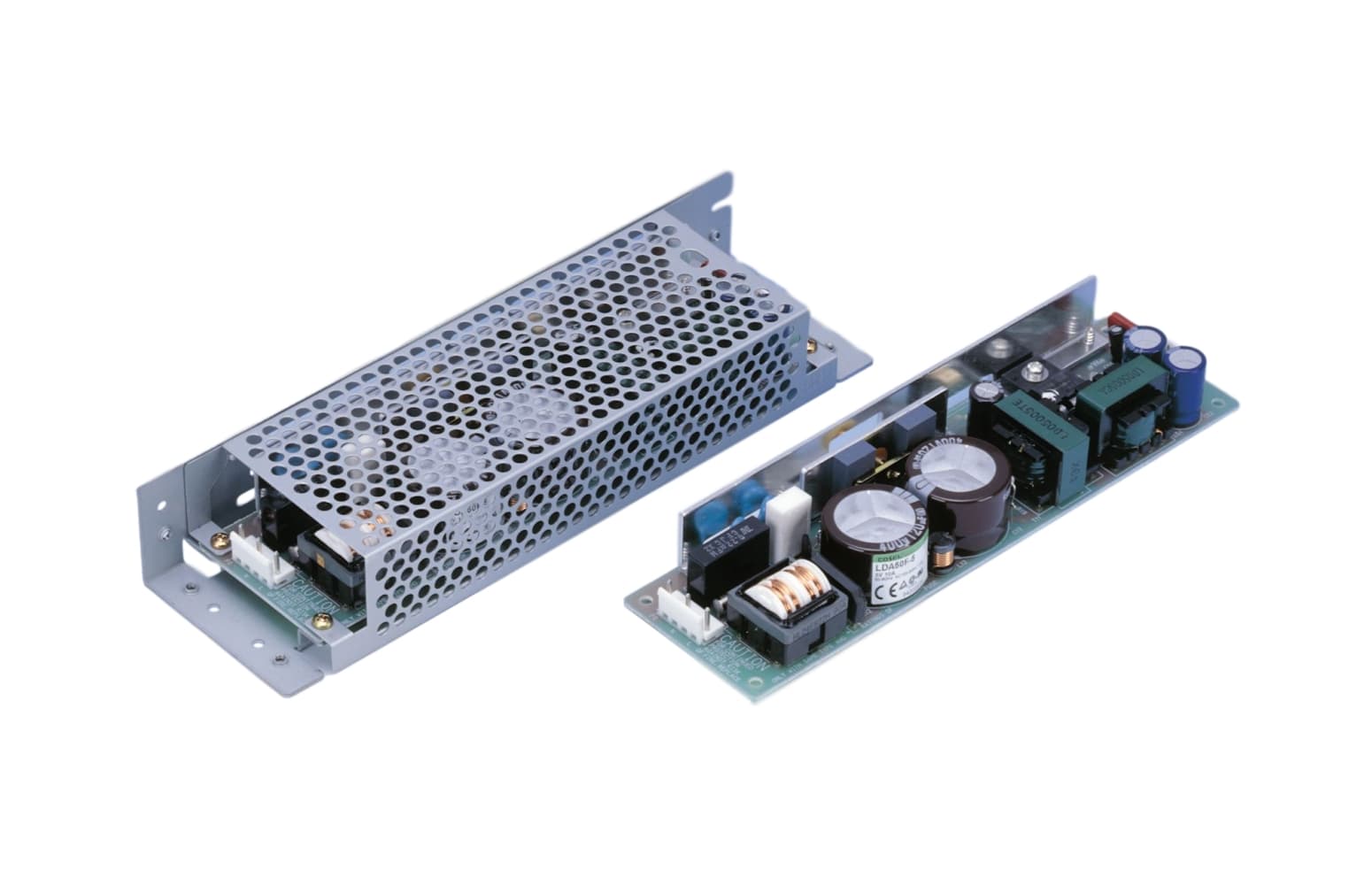

LDA50F

LDA50F

Discontinued

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
string(601) "
LDA(1)  50(2)  F(3)  -  5(4)  -  □(5)
(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional *
  C: with Coating
  G: Low leakage current
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LDA(1)  50(2)  F(3)  -  5(4)  -  □(5)

(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional *
  C: with Coating
  G: Low leakage current
  R: with Remote ON/OFF
  S: with Chassis
  SN: with Chassis & cover
  Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
Basic Specification LDA50F-3 LDA50F-5 LDA50F-9 LDA50F-12 LDA50F-15 LDA50F-18 LDA50F-24 LDA50F-24-H LDA50F-24-HR LDA50F-30
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC110 - 370V AC85 - 264V 1Φ or DC110 - 370V AC85 - 264V 1Φ or DC110 - 370V AC85 - 264V 1Φ or DC110 - 370V
Output Voltage / Current 3V 10A 5V 10A 9V 5.6A 12V 4.3A 15V 3.5A 18V 2.8A 24V 2.1A 24V 2.1A (Peak: 3A) 30V 1.7A
Output Power 30W 50W 50.4W 51.6W 52.5W 50.4W 50.4W 51W
Output Voltage Adj Range 2.85 - 3.6V Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +60℃, 20 - 90%RH (Non condensing) * -10 to +60℃, 20 - 90%RH (Non condensing) * -10 to +60℃, 20 - 90%RH (Non condensing) * -10 to +60℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 55x26x195mm 55x26x195mm 55x26x195mm 55x26x195mm
Safety Agency Approvals UL60950-1, CSA C22.2 No.60950-1, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, CSA C22.2 No.60950-1, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, CSA C22.2 No.60950-1, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, CSA C22.2 No.60950-1, EN62368-1 Complies with DEN-AN and IEC60950-1
Technical Data LDA50F-3 LDA50F-5 LDA50F-9 LDA50F-12 LDA50F-15 LDA50F-18 LDA50F-24 LDA50F-24-H LDA50F-24-HR LDA50F-30
Performance Data On request
EMC Data On request On request
Expected Life N/A N/A
MTBF On request On request
Reliability Data
