PRODUCTS AC-DC LDA SERIES LDA300W
Enquire

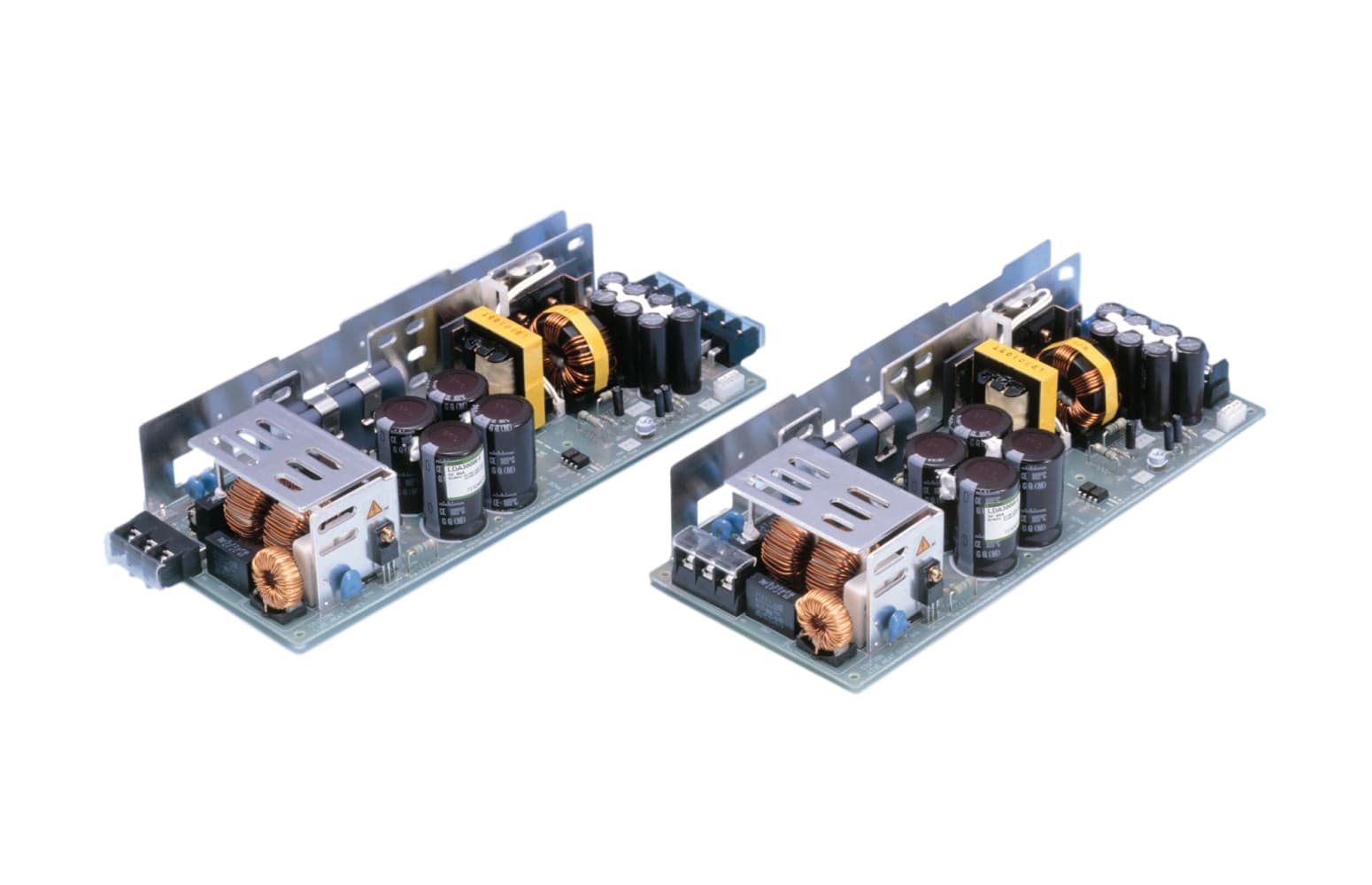

LDA300W

LDA300W

Discontinued

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  L: with LED
  R: with Remote ON/OFF
  S: with Chassis
  SNF: with Chassis & cover & fan
  T: Vertical terminal block
*Please contact us about safety approvals for the model with option.
string(645) "
LDA(1)  300(2)  W(3)  -  5(4)  -  □(5)
(1) Series name
(2) Output wattage
(3) Autoranging input
(4) Output voltage
(5) Optional *
  C: with Coating
  G: Low leakage current
  L: with LED
  R: with Remote ON/OFF
  S: with Chassis
  SNF: with Chassis & cover & fan
  T: Vertical terminal block
*Please contact us about safety approvals for the model with option."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

LDA(1)  300(2)  W(3)  -  5(4)  -  □(5)

(1) Series name
(2) Output wattage
(3) Autoranging input
(4) Output voltage
(5) Optional *
  C: with Coating
  G: Low leakage current
  L: with LED
  R: with Remote ON/OFF
  S: with Chassis
  SNF: with Chassis & cover & fan
  T: Vertical terminal block
*Please contact us about safety approvals for the model with option.
Basic Specification LDA300W-3 LDA300W-5 LDA300W-9 LDA300W-12 LDA300W-15 LDA300W-18 LDA300W-24 LDA300W-30 LDA300W-48
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 132V/170 - 264V 1Φ AC85 - 132V/170 - 264V 1Φ AC85 - 132V/170 - 264V 1Φ
Output Voltage / Current 3V 60A 5V 60A 9V 34A 12V 27A 15V 22A 18V 17A 24V 14A 30V 10A 48V 6.3A
Output Power 180W 300W 306W 324W 330W 306W 336W 300W 302.4W
Output Voltage Adj Range 2.85 - 3.6V Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection/Forced air (Refer to DERATING CURVE) Convection/Forced air (Refer to DERATING CURVE) Convection/Forced air (Refer to DERATING CURVE)
Dimensions (W x H x D) 108x50x255mm (without terminal block) 108x50x255mm (without terminal block) 108x50x255mm (without terminal block)
Safety Agency Approvals UL60950-1, C-UL, EN62368-1
Complies with DEN-AN and IEC60950-1		 UL60950-1, C-UL, EN62368-1
Complies with DEN-AN and IEC60950-1		 UL60950-1, C-UL, EN62368-1
Complies with DEN-AN and IEC60950-1
Technical Data LDA300W-3 LDA300W-5 LDA300W-9 LDA300W-12 LDA300W-15 LDA300W-18 LDA300W-24 LDA300W-30 LDA300W-48
Performance Data On request On request On request On request
EMC Data
Expected Life N/A N/A N/A
MTBF
Reliability Data
