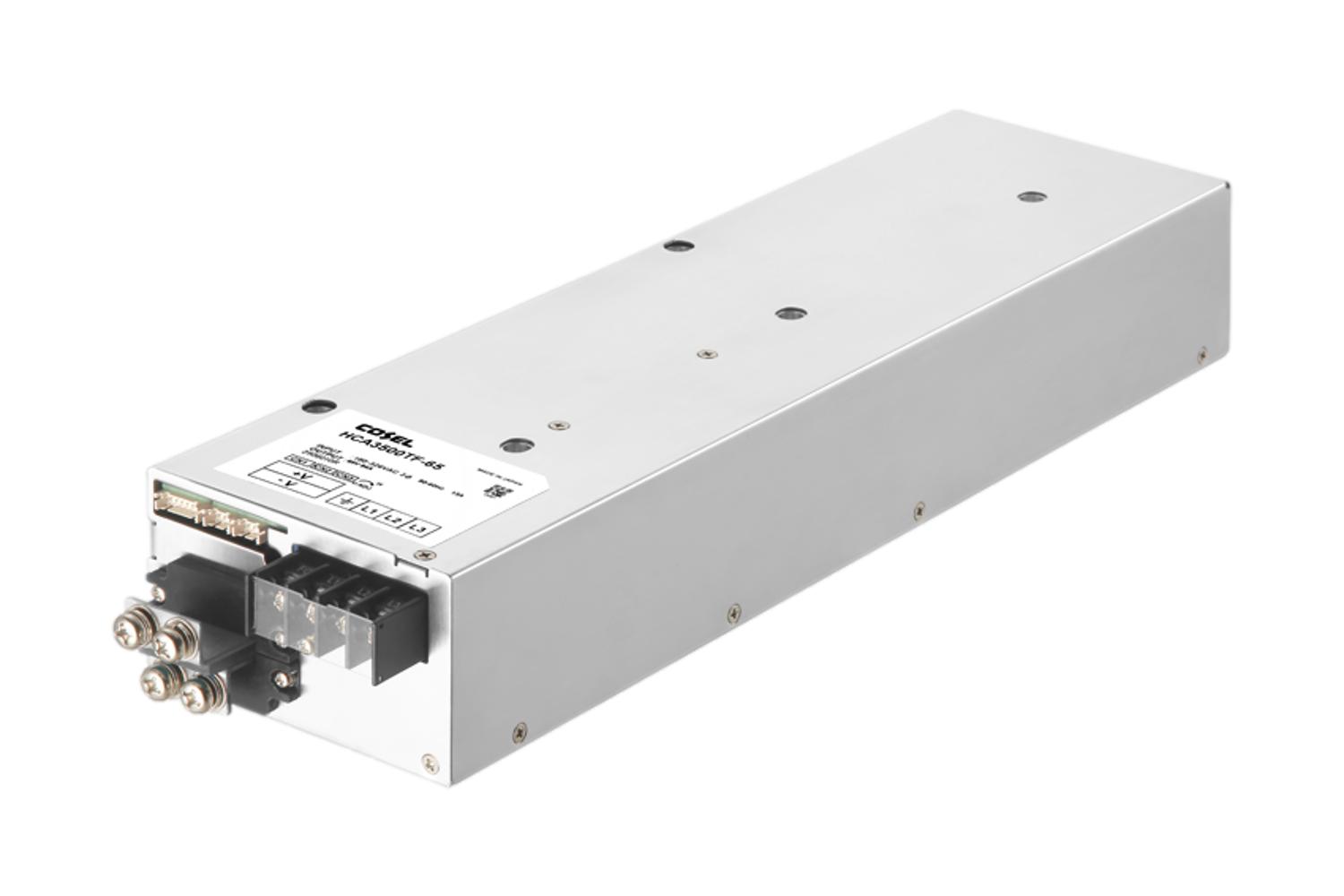

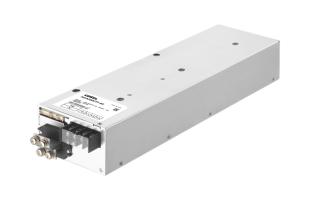

HCA3500TF

HCA3500TF

Key Product Features

･Fanless (Conduction cooling )
･Low profile (65mm, 2.65 inch = Meet 1.5U height)
･Wide input voltage range : 3Φ 180 - 528VAC
･High efficiency
･Parallel Operation / N+1 Parallel Redundancy Operation
･Built-in AUX (12V1A)
･Bult-in Alarms
･Remote ON / OFF function

Technical Features

  • Alarm
  • Communication Function
  • Parallel Function
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

R：with Remote ON/OFF Positive logic control
G：Low leakage current
T1 : Different shaped output terminal
I4：with MODBUS interface
Specification is changed at option, refer to Instruction manual.
string(541) "
HC(1)　A(2)　3500(3)　TF(4)　　-　□□(5)　-　□(6)　

(1)Series name
(2)Single output
(3)Output wattage
(4)3 phase full range input
(5)Output voltage
(6)Optional
R：with Remote ON/OFF Positive logic control
G：Low leakage current
T1 : Different shaped output terminal
I4：with MODBUS interface
Specification is changed at option, refer to Instruction manual."

Product Data

  • Datasheet
  • Instruction Manual
  • Thermal Design Application Manual
  • HCA Series MODBUS Communication Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model (includes R, G...
    • T1 : Different shaped output...
  • 3D CAD Data (IGES)
    • Standard model (includes R, G...
    • T1 : Different shaped output...
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

HC(1)　A(2)　3500(3)　TF(4)　　-　□□(5)　-　□(6)　


(1)Series name
(2)Single output
(3)Output wattage
(4)3 phase full range input
(5)Output voltage
(6)Optional
R：with Remote ON/OFF Positive logic control
G：Low leakage current
T1 : Different shaped output terminal
I4：with MODBUS interface
Specification is changed at option, refer to Instruction manual.
Basic Specification HCA3500TF-48 HCA3500TF-65
  Check Stock Check Stock
Input Voltage Range 180 - 528VAC 3Φ
Output Voltage / Current 48V 73A 65V 54A
Output Power 3504W 3510W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) 0 to +55℃ (Baseplate temperature),
-10 to +70℃ (Ambient temperature),
20 - 90%RH(Non condensing) *
Cooling Method Conduction cooling
Dimensions (W x H x D) 110×65×420mm
(without terminal block)
Safety Agency Approvals UL62368-1, C-UL(equivalent to CAN/CSA-C22.2 No. 62368-1), EN62368-1
Technical Data HCA3500TF-48 HCA3500TF-65
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data


⌅
