PRODUCTS AC-DC FETA SERIES FETA2500BA

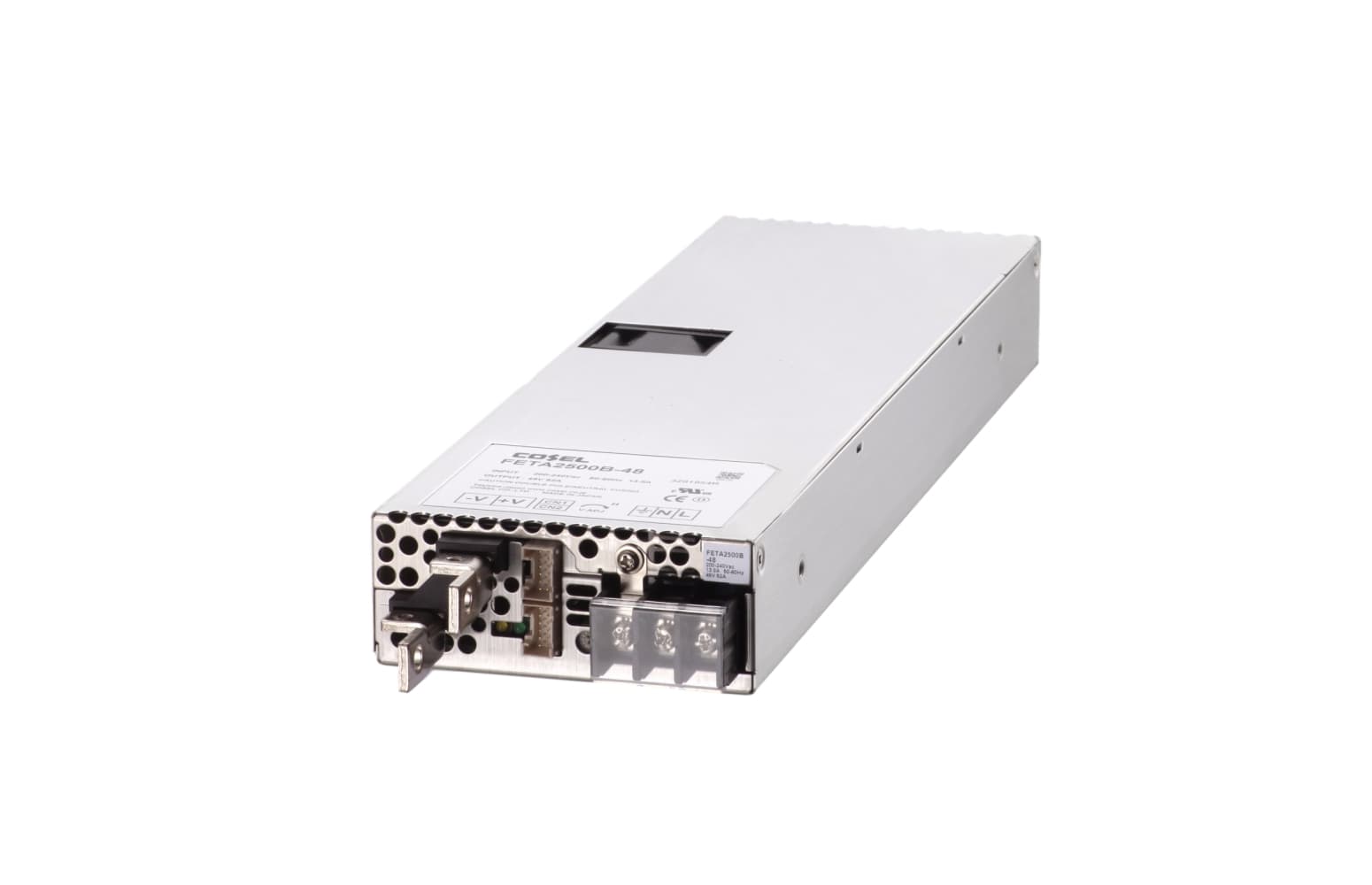

FETA2500BA

Key Product Features

1U High Front End Power Supply
92.5% Efficiency
Parallel/Redundancy Operation
Adjust Output Voltage down to 0V
3 Year Warranty
EN & UL Approved

Technical Features

Remote On/Off
Constant Current
Alarm
Parallel Function
Voltage adjustable to 0V
< 1U High

Options

(For detailed information, please refer to the instruction manual)

FET⁽¹⁾ A⁽²⁾ 2500⁽³⁾ B⁽⁴⁾ A⁽⁵⁾ - □□⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) 200/230V input
(5) Version
(6) Output voltage

string(348) "FET⁽¹⁾  A⁽²⁾  2500⁽³⁾  B⁽⁴⁾  A⁽⁵⁾  -  □□⁽⁶⁾
(1) Series name
(2) Single output
(3) Output wattage
(4) 200/230V input
(5) Version
(6) Output voltage"

Product Data

Datasheet
Instruction Manual
Accessories
Glossary of Technical Terms

Drawings

CAD Data (DXF)
3D CAD Data (STEP)
- Standard model
3D CAD Data (IGES)
- Standard model
Block diagram

Safety Certificates

Safety Approvals
EU Declaration of Conformity
UK Declaration of Conformity

FET⁽¹⁾ A⁽²⁾ 2500⁽³⁾ B⁽⁴⁾ A⁽⁵⁾ - □□⁽⁶⁾

(1) Series name
(2) Single output
(3) Output wattage
(4) 200/230V input
(5) Version
(6) Output voltage

Basic Specification	FETA2500BA-36	FETA2500BA-48
	Check Stock	Check Stock
Input Voltage Range	AC170 - 264V 1Φ
Output Voltage / Current	36V 55A	48V 52A
Output Power	1980W	2496W
Output Voltage Adj Range	28.80 - 39.60V	38.40 - 52.80V
Operating Temp (°C)	-10 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing)
Cooling Method	Forced cooling (internal fan)
Dimensions (W x H x D)	102x41x340mm
Safety Agency Approvals	UL62368-1, C-UL (CSA62368-1) , EN62368-1
Technical Data	FETA2500BA-36	FETA2500BA-48
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
